Mobile Wireless Refraction System

The objective and subjective refraction exam in a few minutes.

Through the combination of VisionFit SC and 2WIN or VisionFit SC and Kaleidos, the operator can perform an objective and subjective exam in just a few minutes. By introducing these wireless, wearable, light-weight, and highly innovative devices to the medical space, we envision a minimalistic and modern future for clinical ophthalmic examinations. The stylish simplicity of this refraction system, mixed with an increased accuracy of result, provides a cutting-edge solution to the future of diagnostic technology.

How does it work?

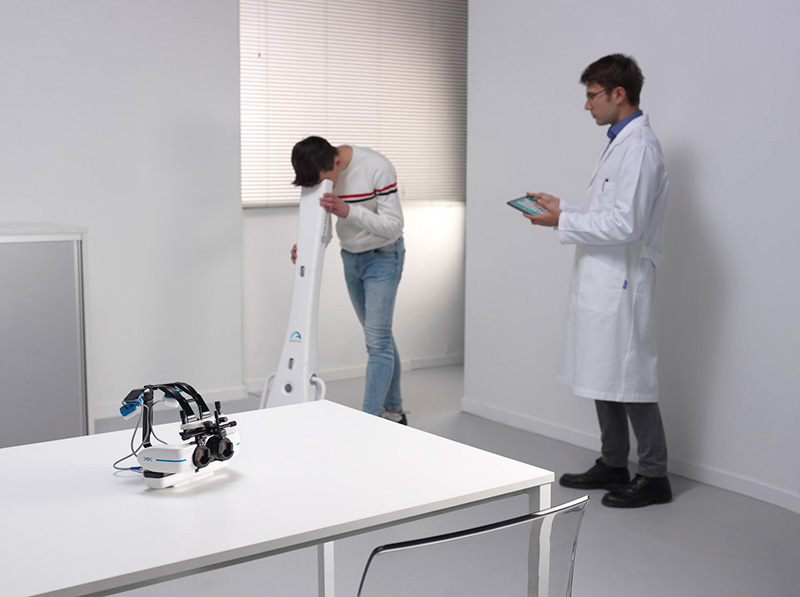

The Mobile Wireless Refraction System (MWRS) is the combination of 2WIN and VisionFit SC or Kaleidos and VisionFit SC. In MWRS configuration the two devices work together in a synchronized way: 2WIN or Kaleidos measures the objective refraction and sends the data to VisionFit SC.

The prescription obtained from the objective refraction can be applied to the VisionFit SC lenses just tapping on a tablet’s button. In this way the operator can immediately proceed with the subjective refraction starting from the objective exam’s results.

2WIN - Binocular refractometer and vision analyzer

2WIN is a mobile binocular refractometer and vision analyzer that measures both eyes at the same time, in real life vision conditions. It fully detects refractive errors, sight anomalies and amblyogenic factors.

Click here for more information.

Kaleidos - First and Unique Binocular Vision Analyzer

Kaleidos is a mobile binocular refractometer and vision analyzer. The device serves as a darkroom and allows the exam to be performed in any light condition: while the patient looks inside of it, the system automatically detects refractive errors in less than three seconds.

Click here for more information.

VisionFit SC - Wearable Wireless Adaptive Refractor

VisionFit SC is an innovative, electronically controlled, mobile and wearable system of lenses. It performs the subjective sight examination combining the features of the phoropter and the wearability of the trial frame.

Click here for more information.

Connectivity

MWRS system, being the top-of-the-line objective and subjective refraction system, uses Wifi and Bluetooth connection to synchronize with all our devices as well as the control panel. MWRS system is totally wireless and mobile, allowing you to optimize the time of examination and make it more comfortable and accurate.

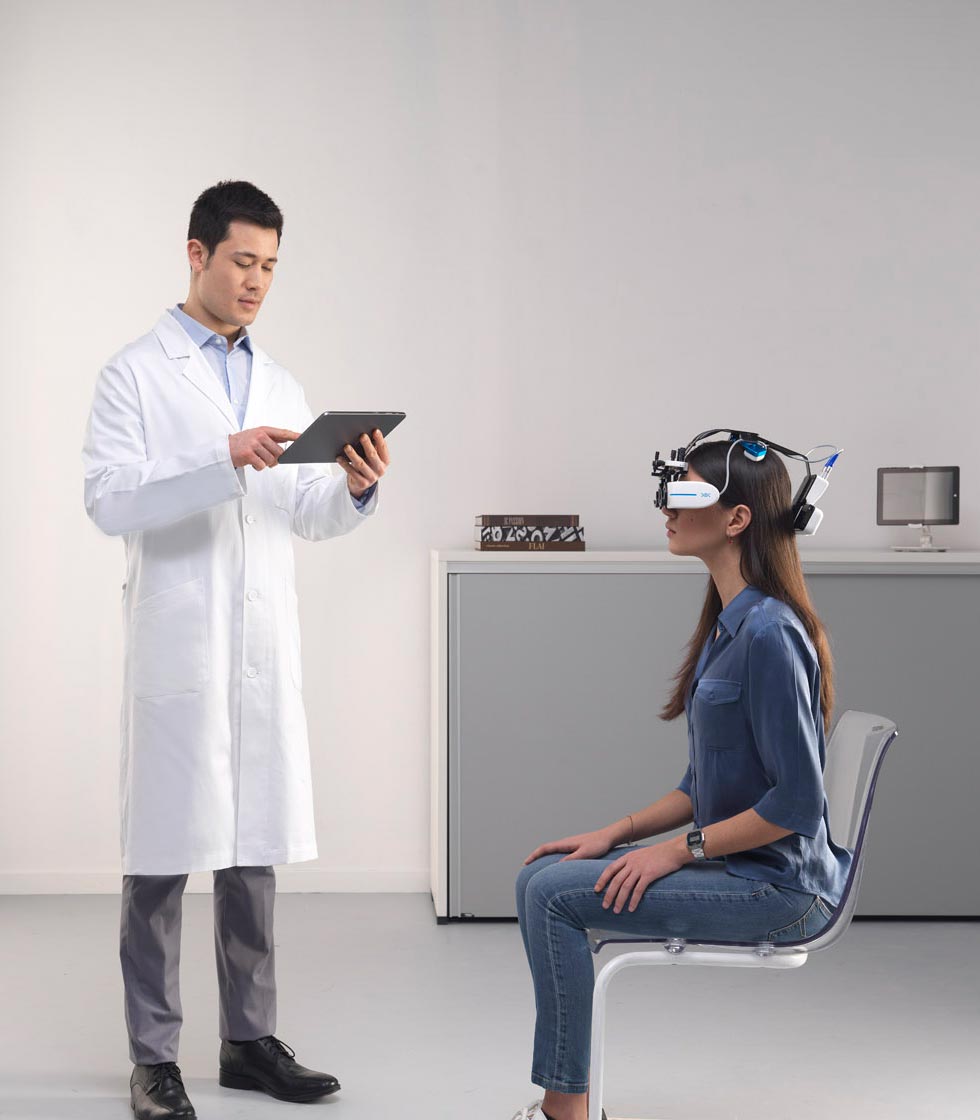

The system is controlled by an app that can be downloaded on an Android tablet. The tablet serves as a control panel that receives data from 2WIN, Kaleidos, VisionFit SC and allows you to manage both objective and subjective refraction in an easy way.

MWRS system allows you to work at the comfort of your desk, while the patient can be standing, seated or any other desired position.
Due to the fast and reliable Wifi connection the system transmit data in real time, minimizing the examination process.

The Bluetooth functionality of the equipment makes it easier than ever before to pair with the Android tablet.
Moreover, the tablet app is constantly updated, allowing you to always have the latest and greatest technology available for your practice.

Portable and Rechargeable

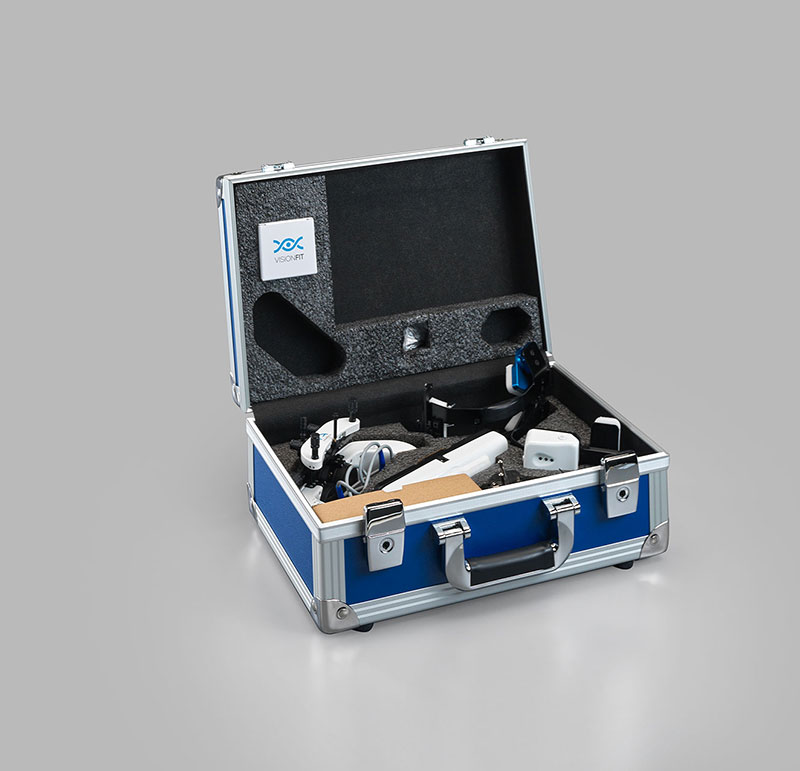

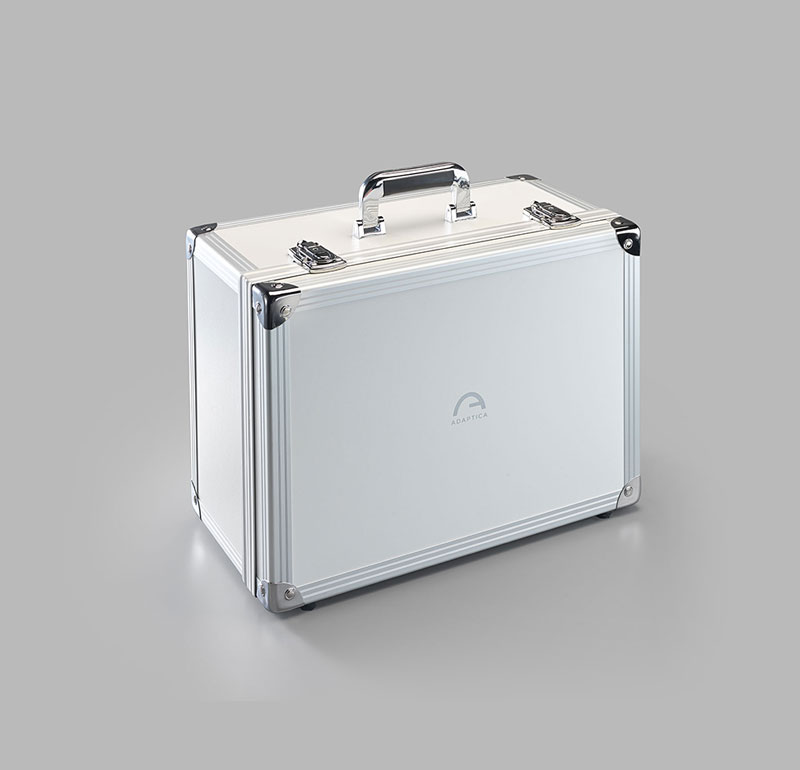

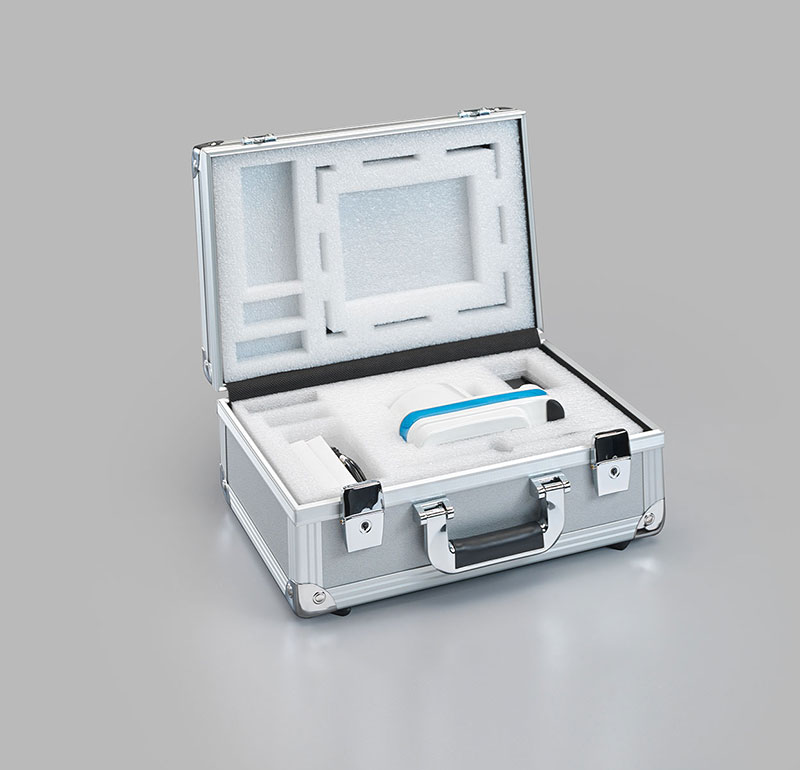

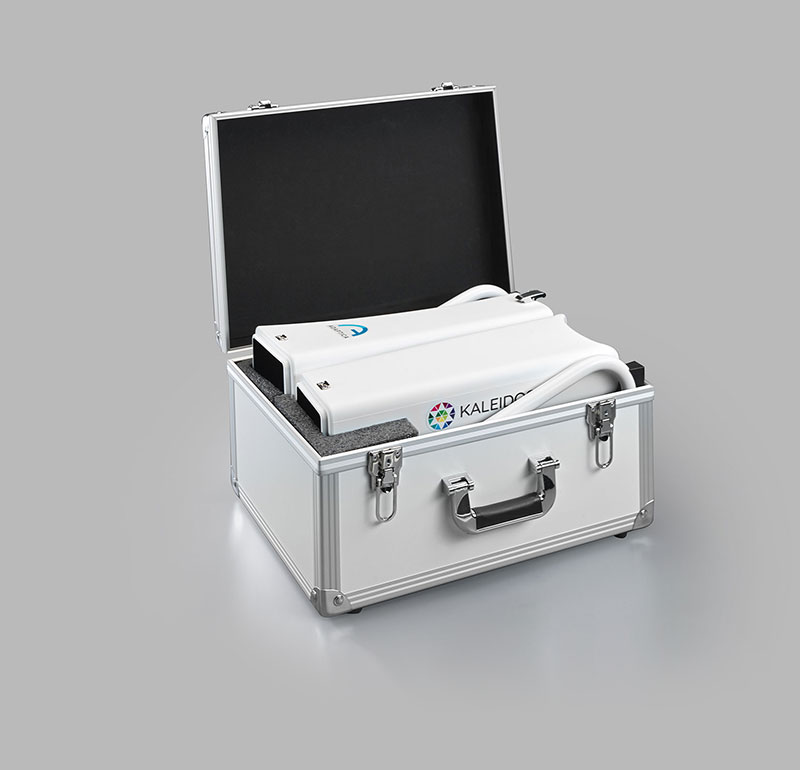

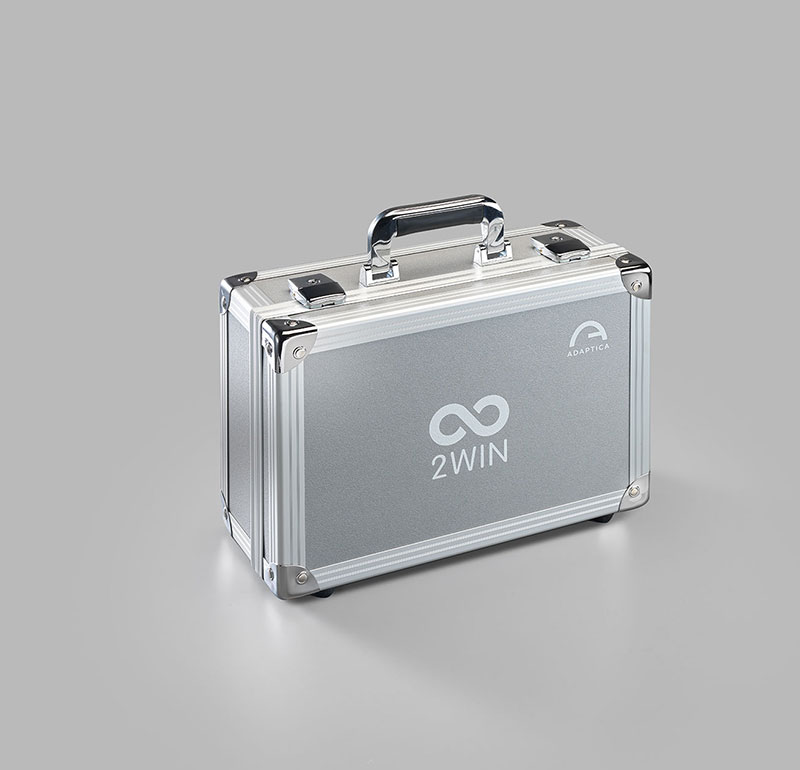

The Refractive System allows the professional to accommodate his entire refraction practice in a single carry-on that can be taken immediately to practice everywhere.

To ensure portability and functionality, all devices of the system are equipped with rechargeable and replaceable battery packs. Those battery packs provide 2-3 day charges, which give peace of mind that your equipments are ready to use when needed. The ability to use the refractive system over and over without a charge is an incredible benefit for fast-paced ophthalmic clinics.

With the innovative adaptive optics of VisionFit I can make a more accurate subjective examination: finally, the patients can experience their best chirurgical option before surgery

Dr. Claudio Panico
Chief of Turin Ophthalmic Hospital

Technical Information

Mobile Wireless Refraction System

KALEIDOS

  • Operating mode: Binocular/monocular
  • Data Interface: Wi-Fi, internal microSD card
  • Refraction Measurement: Automatic
  • Printer Interface: Wi-Fi and email printing
  • Sphere range: ±15 D
  • User Interface: Android application for Wi-Fi smartphones and pads, providing remote control, live streaming, data management
  • Cylinder range: ±5 D
  • Power: Rechargable battery pack, 50 Wh
  • Cylinder axis: 1° – 180°, step 1°
  • Tube Size(cm): 180 x 26 x 14
  • Pupil size: 4-11 mm, step 0.1 mm
  • Metal Stand Size(cm): 41 x 44 x 32
  • Pupil distance: Automatic detection, 30-120 mm, step 1 mm
  • Max height operation system: 129 cm
  • Fixation target: Built-in
  • Net Weight: 3,8 kg
  • Acoustic target: Built-in
  • Battery Charge: AC/DC medical power supply 18V, 40 W

2WIN

  • Operating mode: binocular/monocular
  • Refraction Measurement: Automatic
  • Sphere range: +15, -15 D, step 0.25 D
  • Cylinder range: +5, -5 D, step 0.25 D
  • Cylinder axis: 1° – 180°, step 1°
  • Pupil size: Automatic detection, 4-11 mm, step 0.1 mm
  • Pupil distance: Automatic detection, 30-120 mm, step 1 mm
  • Fixation target: Built-in
  • Acoustic target: Built-in
  • Working distance: 1 m ± 5 cm
  • Data Interface: Wi-Fi, USB, microSD card
  • Printer interface: USB, Infrared (irda)
  • Power: rechargeable battery
  • Battery charger: 110-220 Vac, 0.5 A
  • Size: 165x130x98mm
  • Display: 3.5’’
  • Weight: 840 g (30 oz)
  • Options/Accessories: supplementary battery, battery-charger, metal case, Wi-Fi connectivity

VISIOFIT SC

  • Spherical correction range: -10/+10 D – up to -20/+20 D with the use of a provided additional lens. Adjustable fluidity steps from 0.05 to 0.50 D.
  • Cylindrical correction range: 0 to 10 D by steps from 0.08 of 0.50 D
  • Axis adjustment range: 1-180° by steps of 1°
  • Corneal vertex distance range: 10-18 mm
  • Manual pupil distance adjustment range: 50-80 mm, separated right and left
  • Device free aperture: 30°
  • WiFi Module: Radicom, model: WiFiHU-a
  • Bluetooth Module: IDATA, USB 2.0 Bluetooth Mini Class 2+EDR
  • Power requirement: Voltage: 100-240 VAC, 50-60 Hz Power consumption: 60 VA
